SD-BD-04-01/Rev.10/29-03-67
DISCREPANCY SWITCH (NDCS)
DISCREPANCY SWITCH (NDCS)
Description

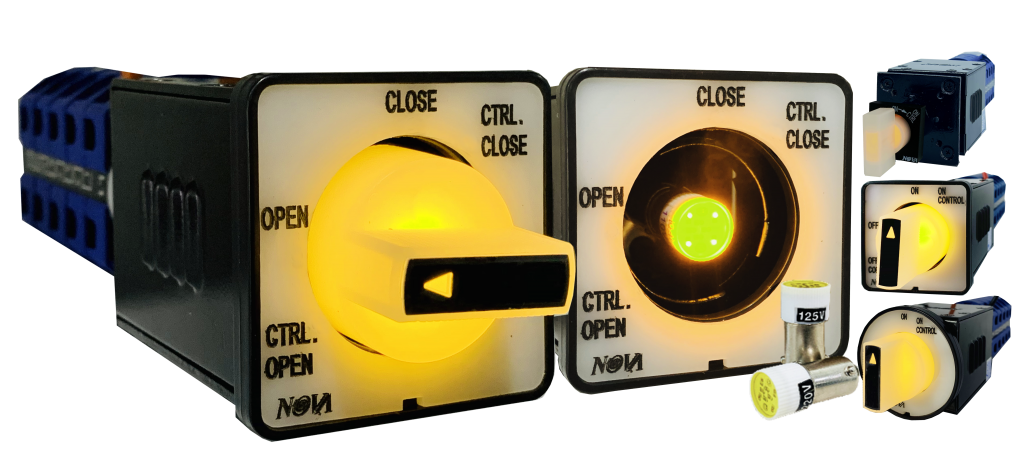

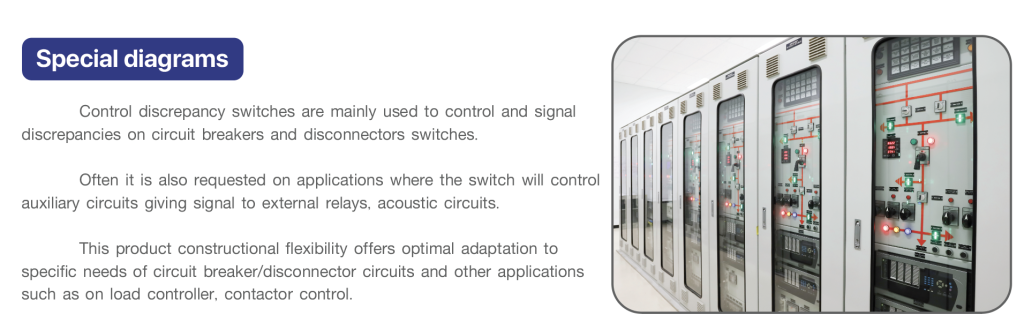

NOVA Discrepancy switches (NDCS) are used to control & monitor the circuit breaker and disconnecting switches. Also display their circuit state in mimic panels and illuminated mimic diagrams.
When it lights up that means the position of the discrepancy switches does not match with the pre-assigned circuit breaker.
The luminous source is from high brightness LED lamp with yellow color.

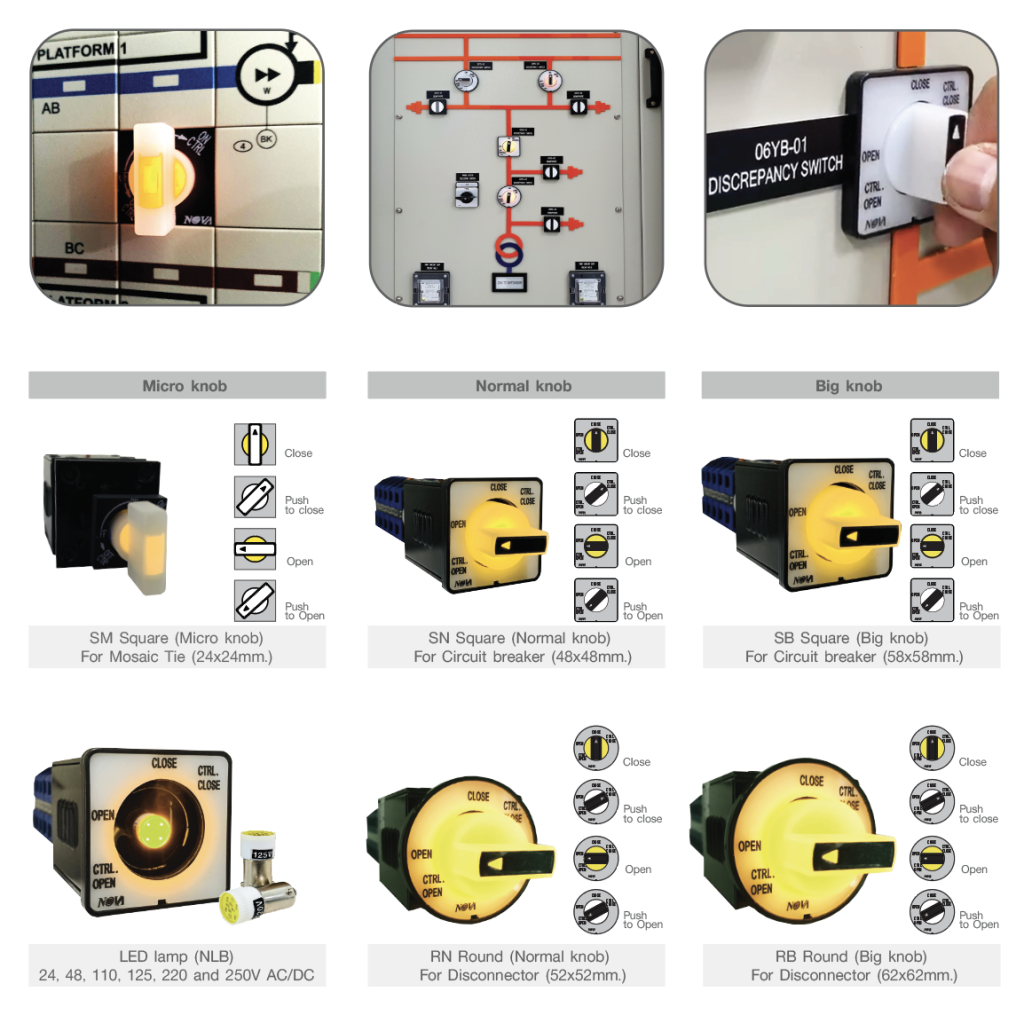

Features
• Robust, durable, compact and luxurious design.
• Provide both round and square installation flanges.
• 2 points switching type (by pushing and turning to right or left side) High brightness LED chip technology with built in current limiting resistor and zener diode.
• Various input voltages (both AC & DC) for LED indicator.
• Flashlight could be supplied as an option.
• Finger proof terminal, screw type for contactor size 0.5-4 mm2

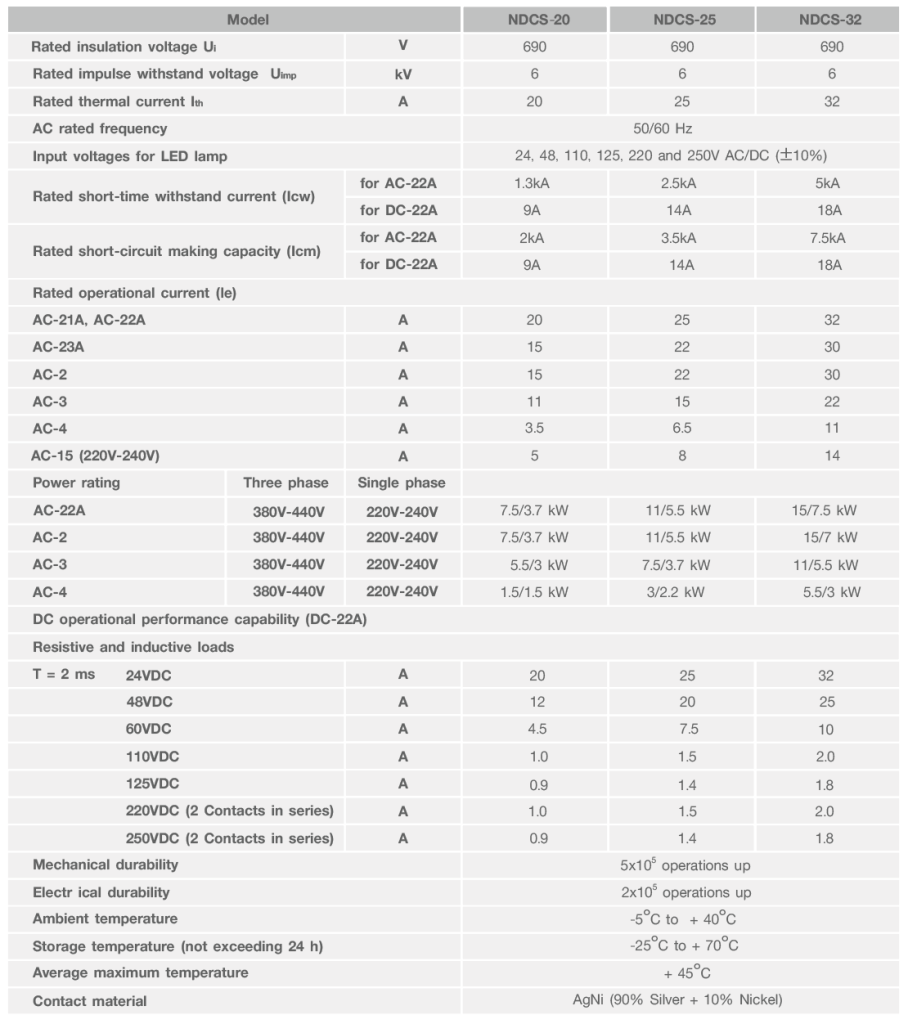

Specification

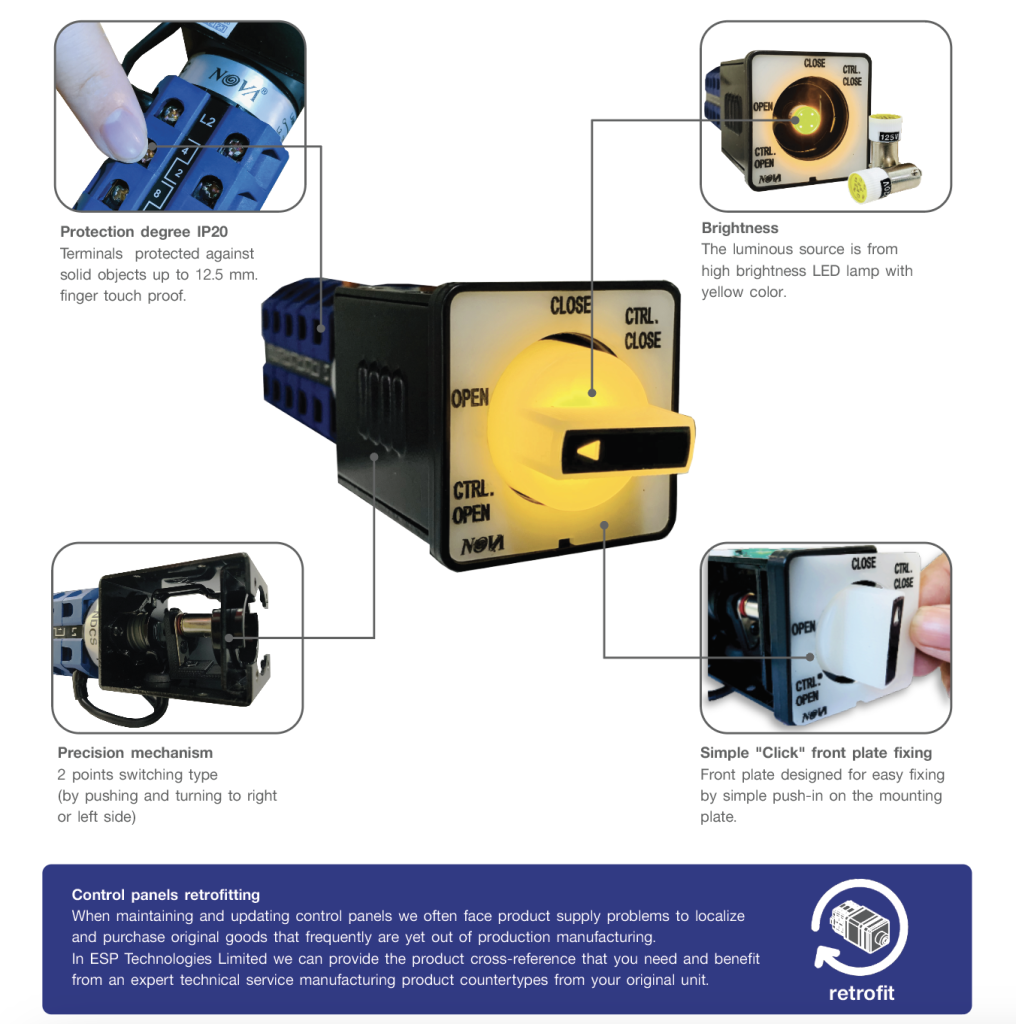

General characteristics
Combining electronics and electro mechanics technology on this product has achieved a solution that is distinguished by its well accomplished integration and simplicity on installation and operation.
• High brightness LED chip technology with built in current limiting resistor and zener diode.
• Encapsulated electronics, Maximum protection and safety.
• Simple mounting insert bolts on frontal breaking mechanism.
• Easy “push to turn” front plate mounting.

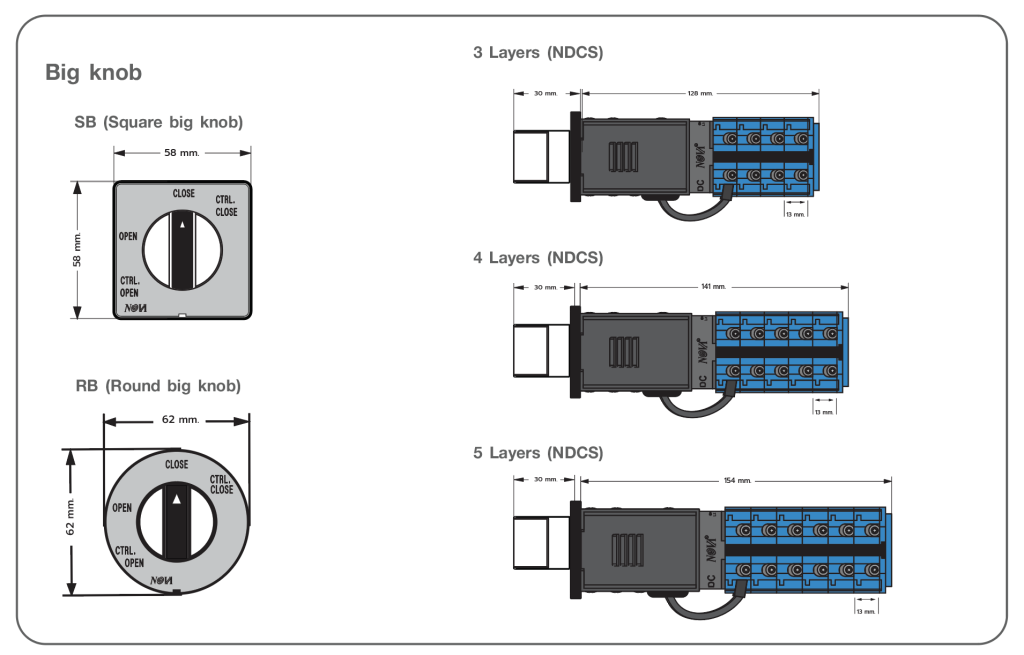

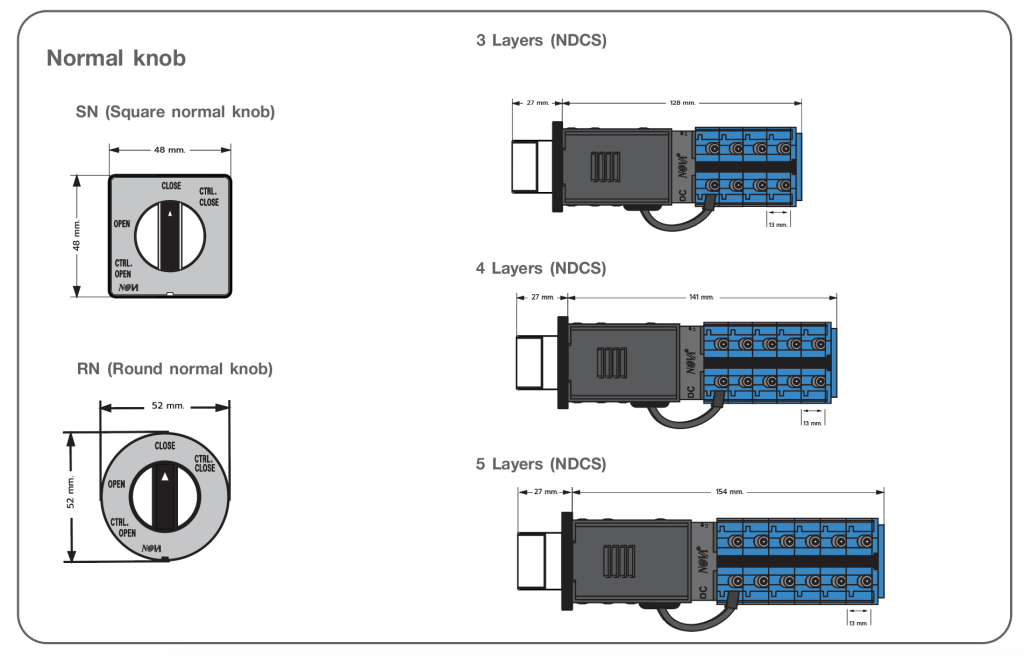

Dimensions

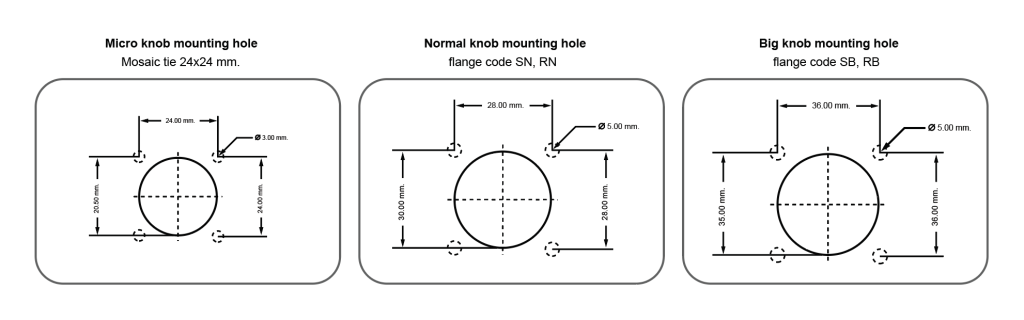

Fixing Dimensions

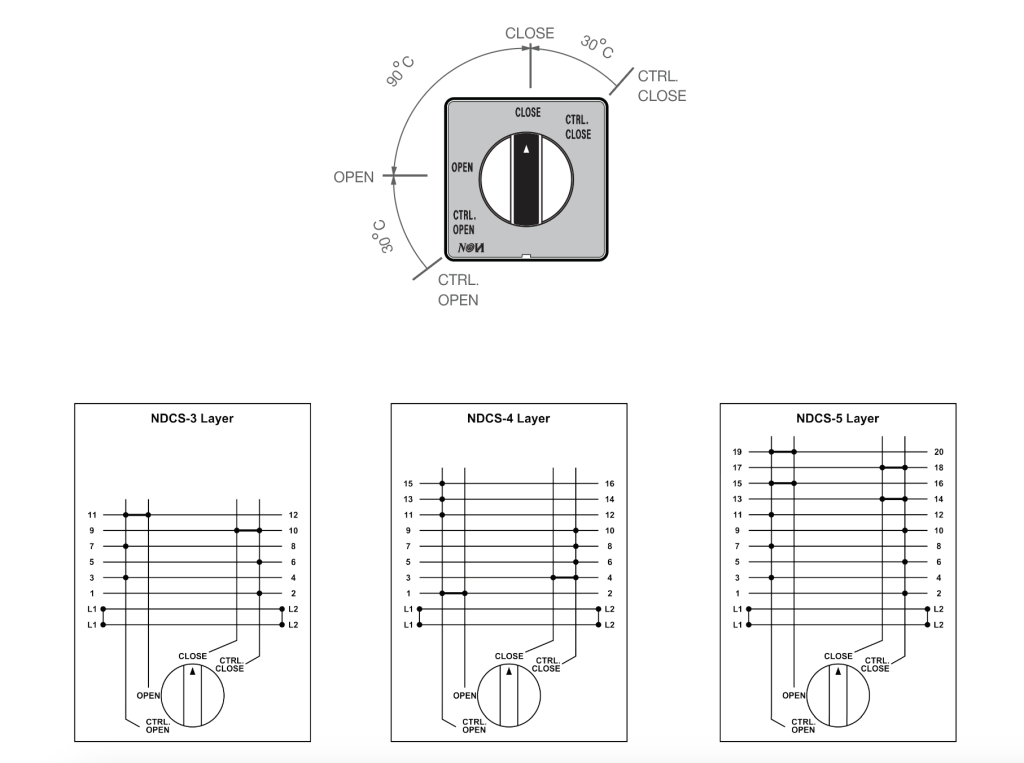

Operation

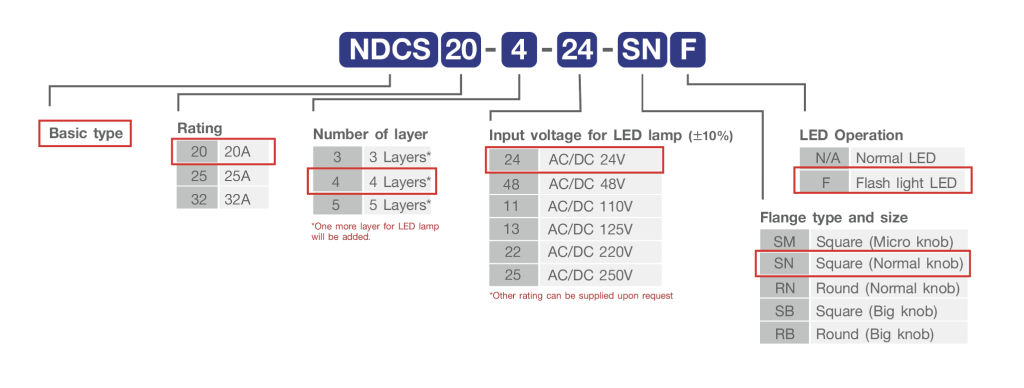

Product Coding
