SD-BD-04-03/Rev.09/14-03-68

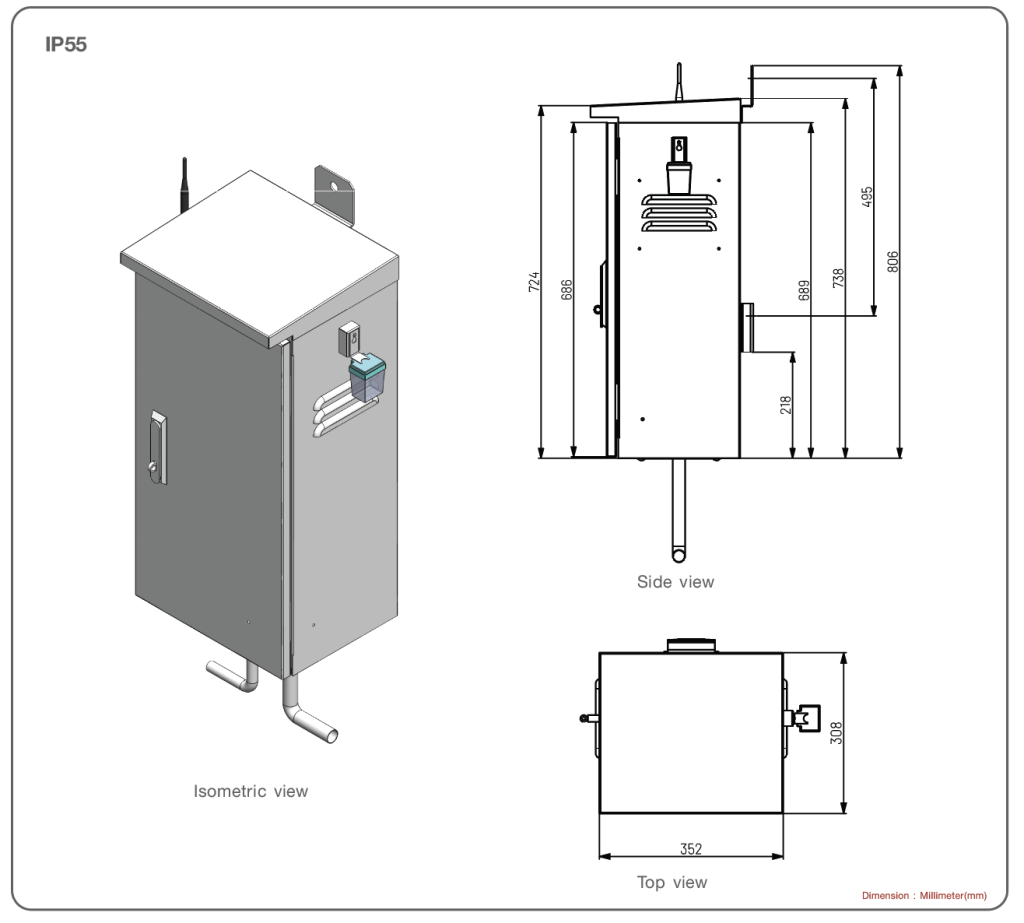

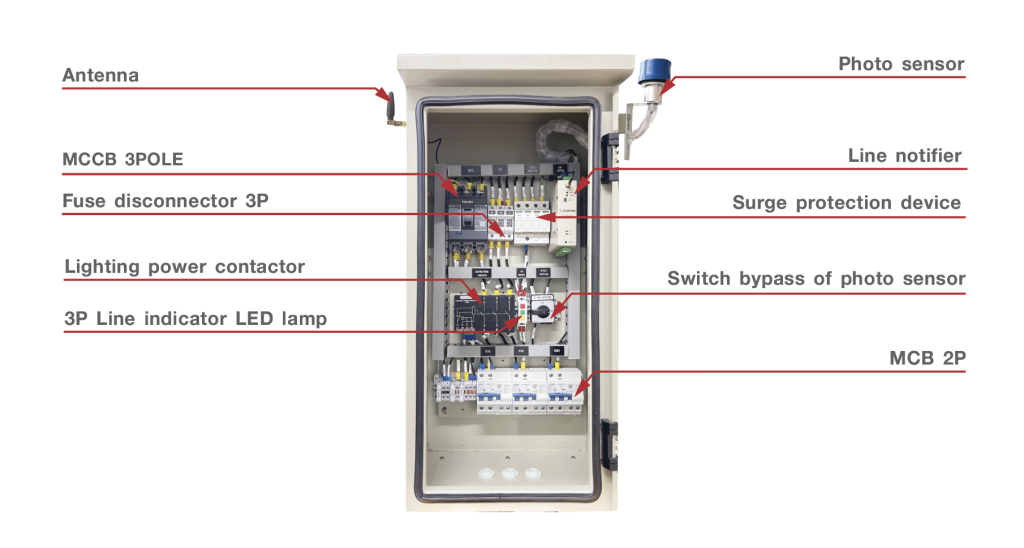

One set of street light pole control cabinet, can control up to 63 lighting poles. Includes a photo switch sensor that controls the automatic power supply after the light is dim. The Lighting power contactor, then supplies power to the pole lamp. While the antenna and online communication system are standby during the power supply is working, if there is an abnormality about the electrical current inside the lighting pole. The LCP will report such events via Line notify system.
