SD-BD-04-01/Rev.10/29-03-67

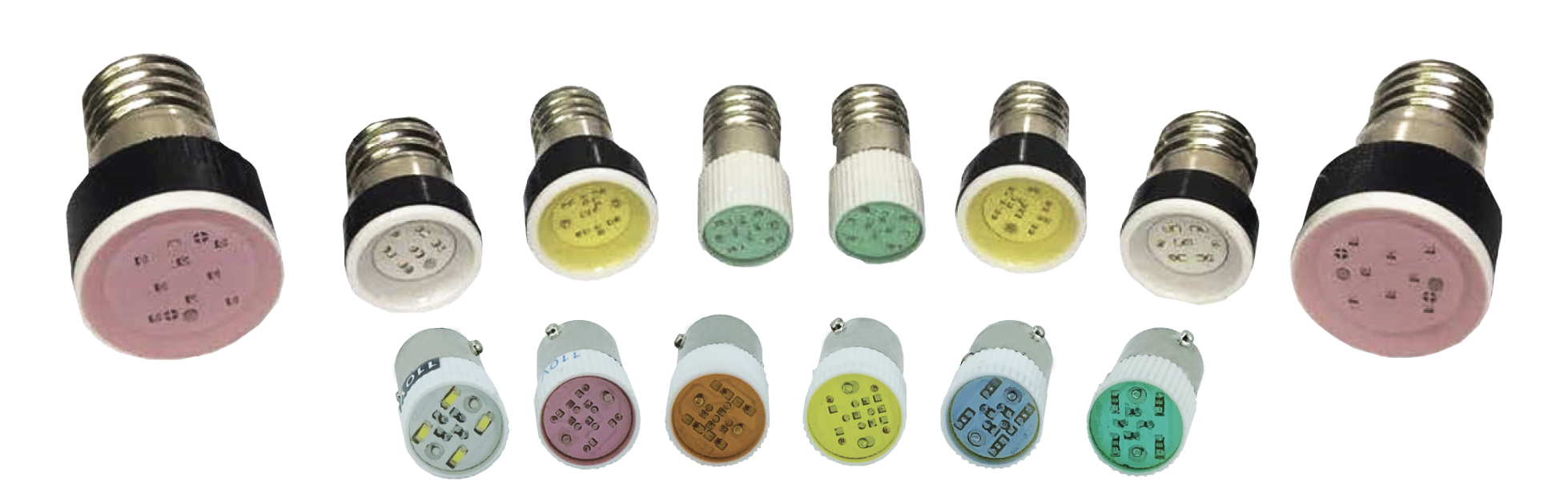

HIGH BRIGHTNESS LED BULB (NLB)
HIGH BRIGHTNESS LED BULB (NLB)
Description
The BA9S and E10 are standard socket of LED bulb, with diameter approx. 9-10mm multi-chip and latest technology assures bright intensity, shock resistance and long life operation. Meanwhile E12 and E14 (diameter 12mm and 14mm) could be done upon customer requested
Features
• Low power consumption
• Lifetime : more than 30,000 hours
• Ambient Temperature : -5°C ~ +50°C
• Insulation : 100MΩ at 500VDC
• Selectable input voltage from AC/DC 24, 48, 70, 110, 125, 220, 230V
• Operating current less than 10mA

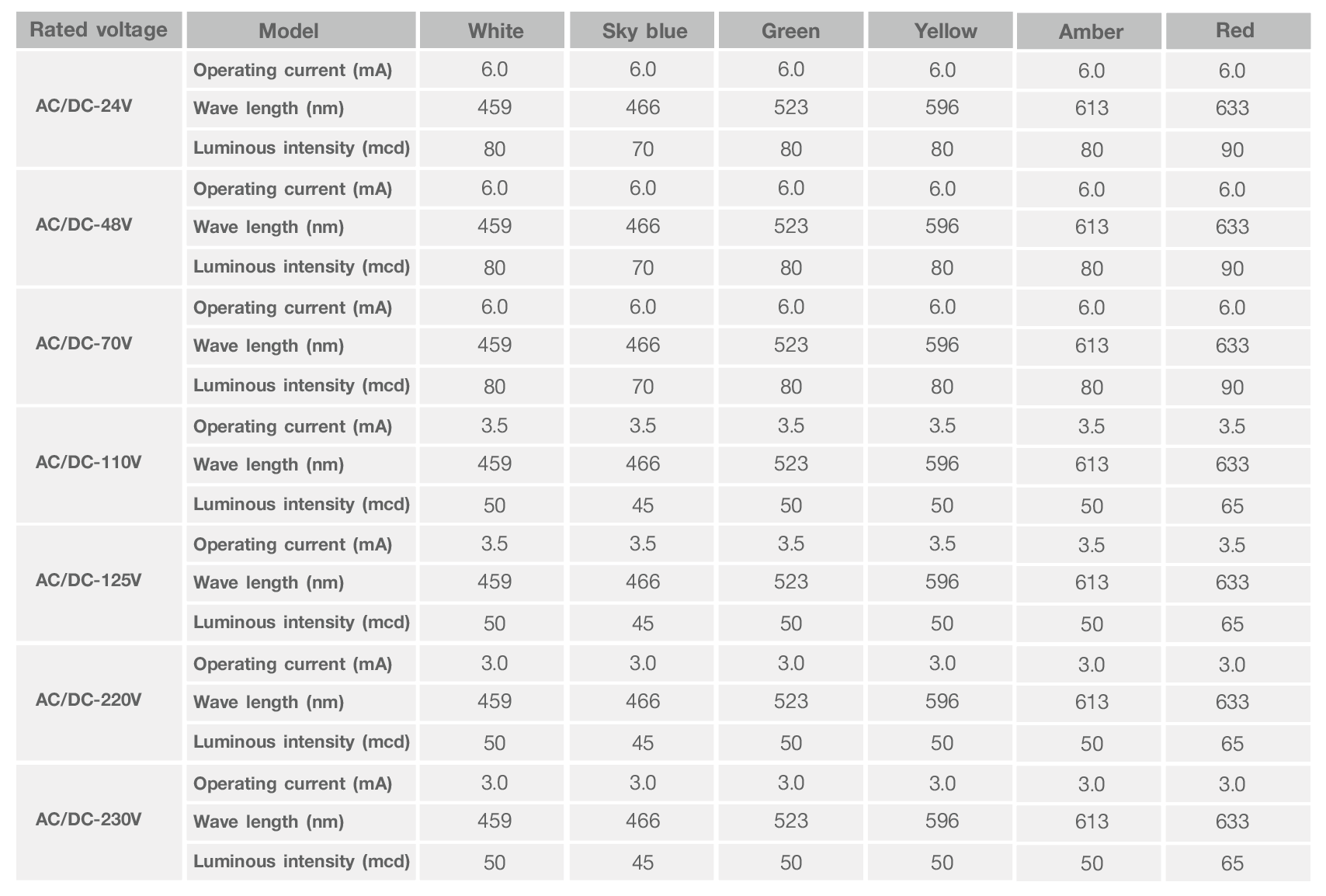

Technical data

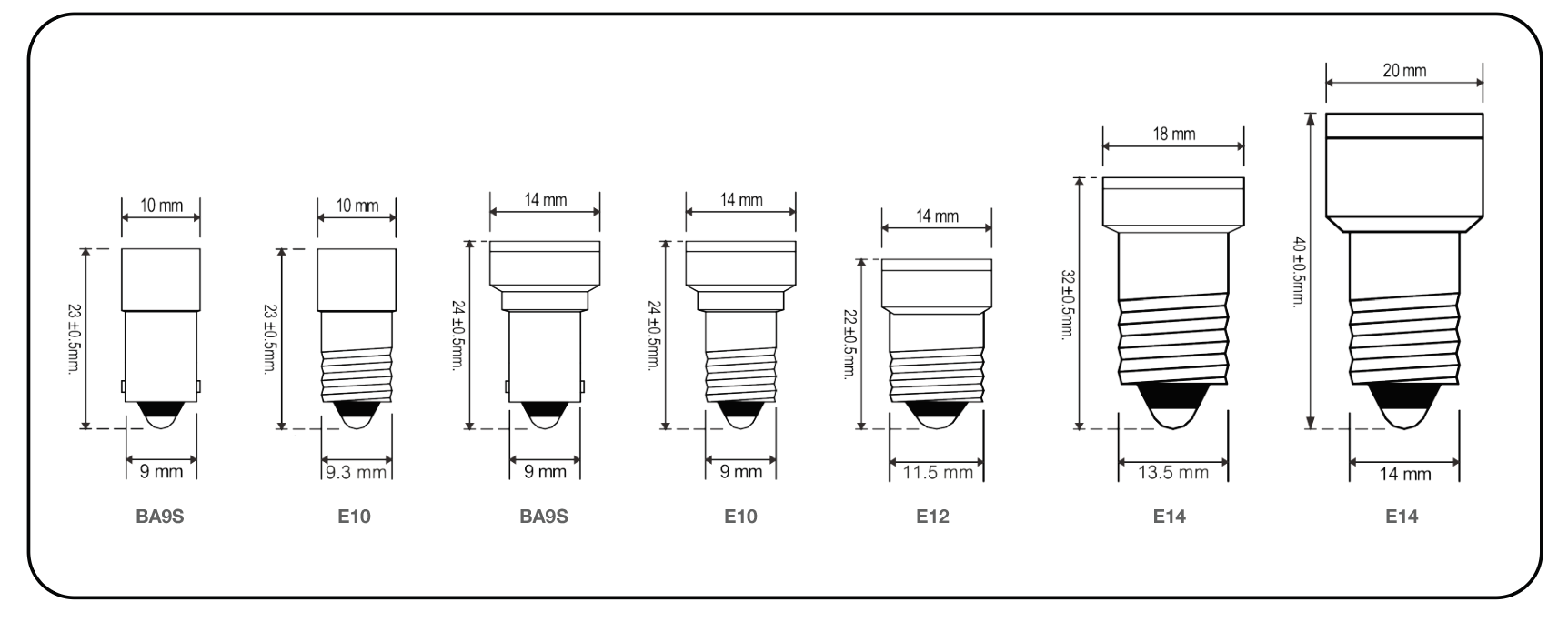

Dimension

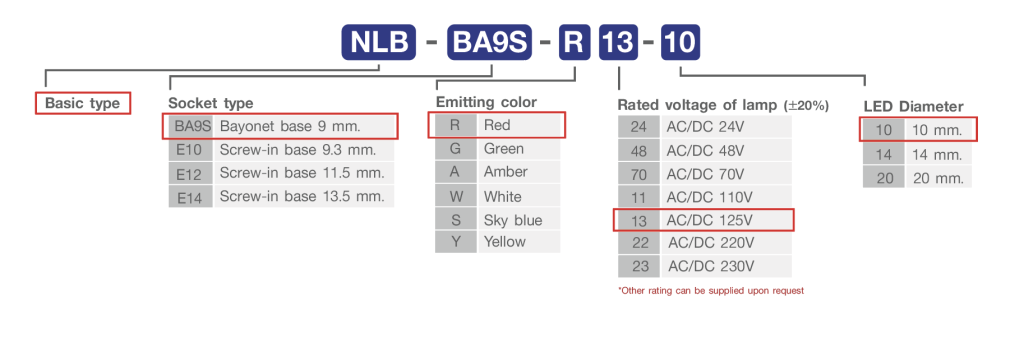

Product Coding
