SD-BD-04-01/Rev.10/29-03-67

HIGH BRIGHTNESS LED BULB (NLB)

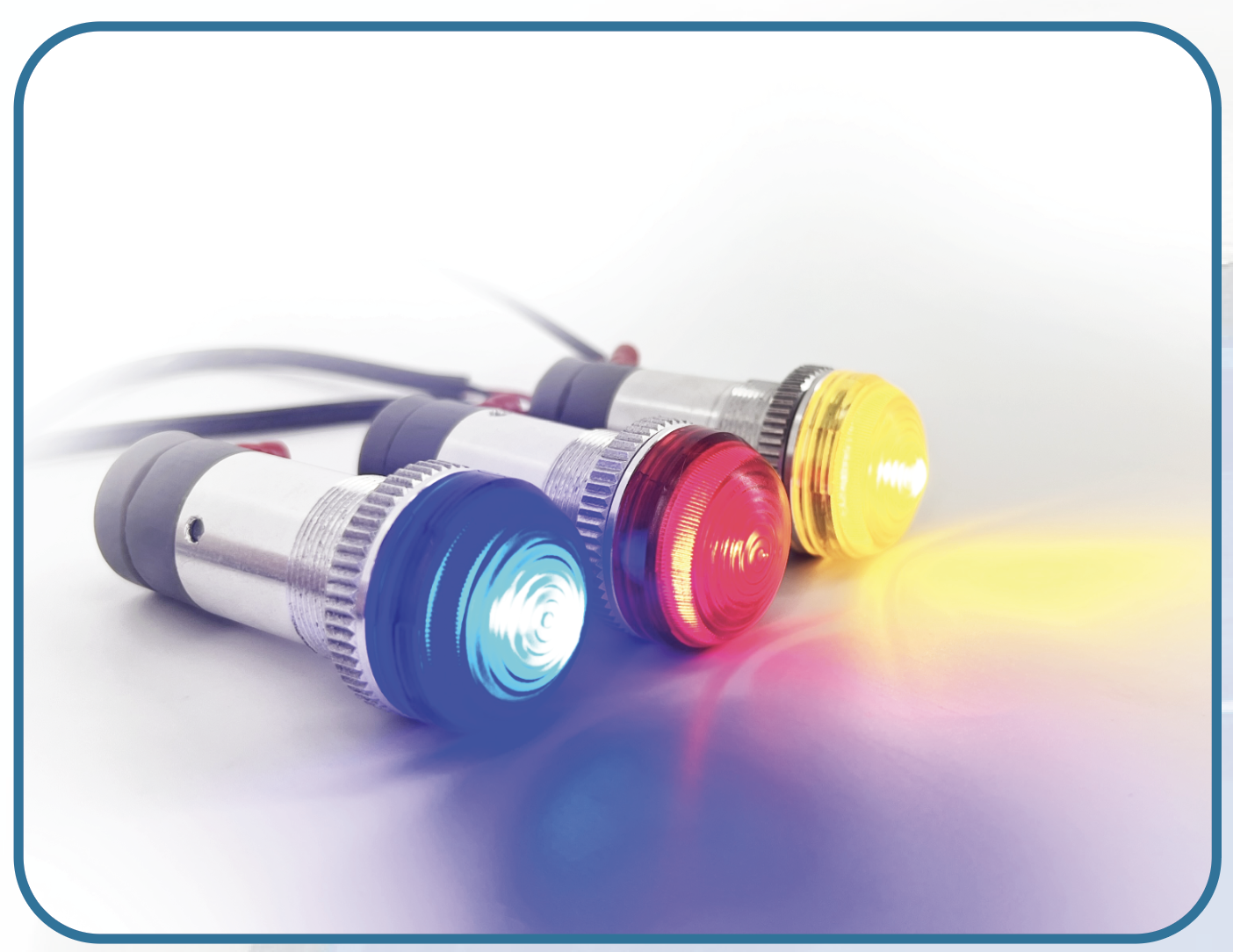

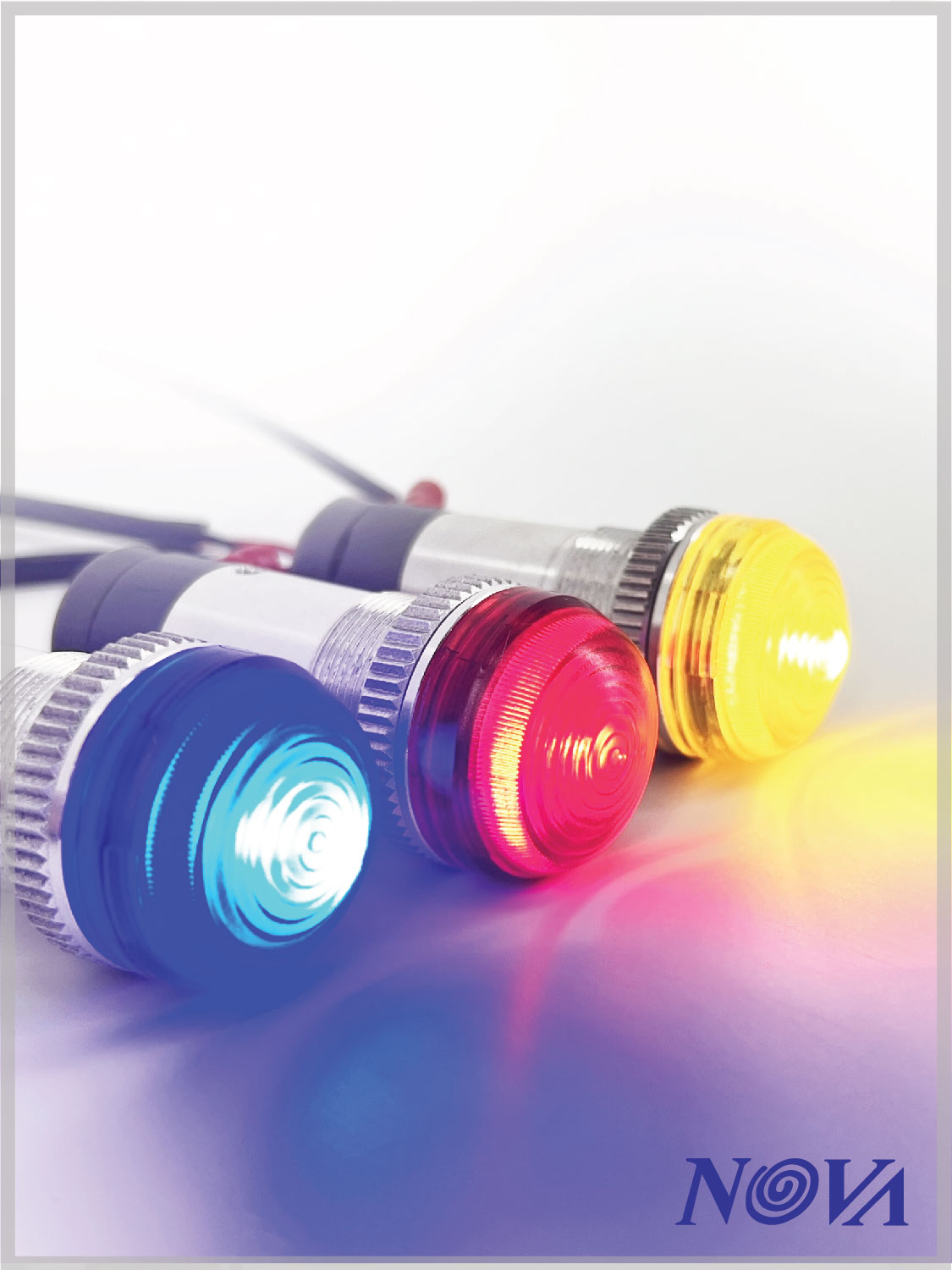

LED ULTRA BRIGHT (NPLU22)

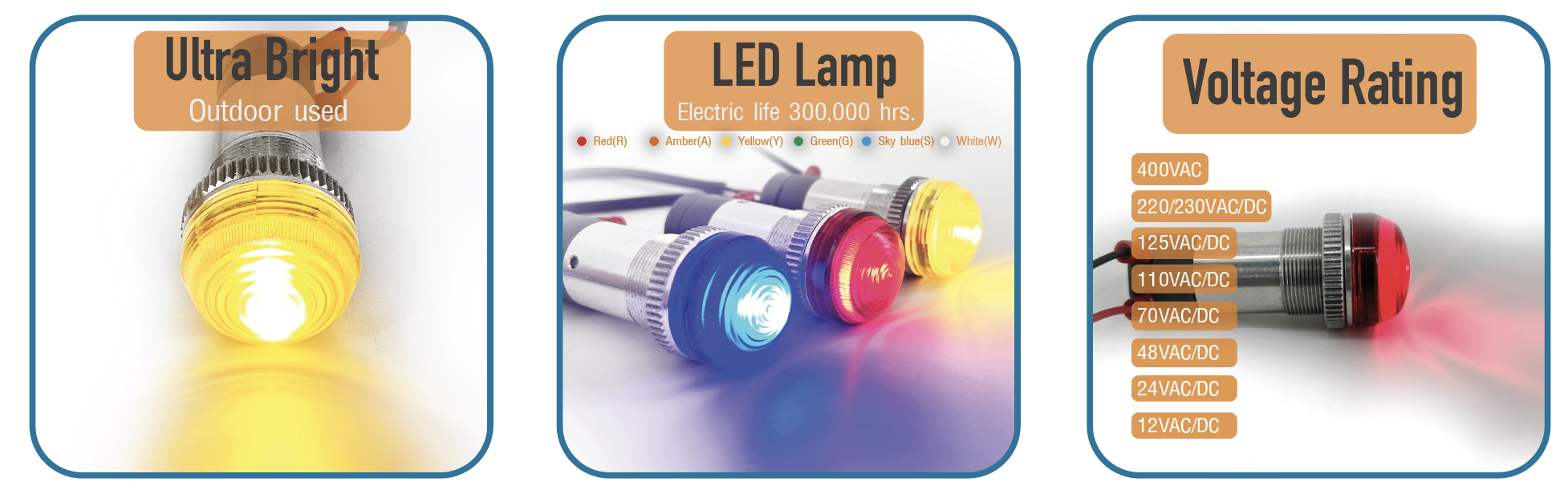

Features

•    This products are made by aluminum alloy

•    Viewable in direct sunlight

•    Visible from all directions

•    Colored and clear lenses

•    Integrated terminal cover is IP65

•    Full voltage up to 480VAC 50/60Hz without bulky transformer

•    Other voltage rating can be done upon request

•    Unique Lens & bulb uniform body assures bright intensity, shock resistance, and oil tight construction

•    The use of an ultra-bright Led that is not susceptible to external scattered light ensures high visibility and provides for more accurate recognition

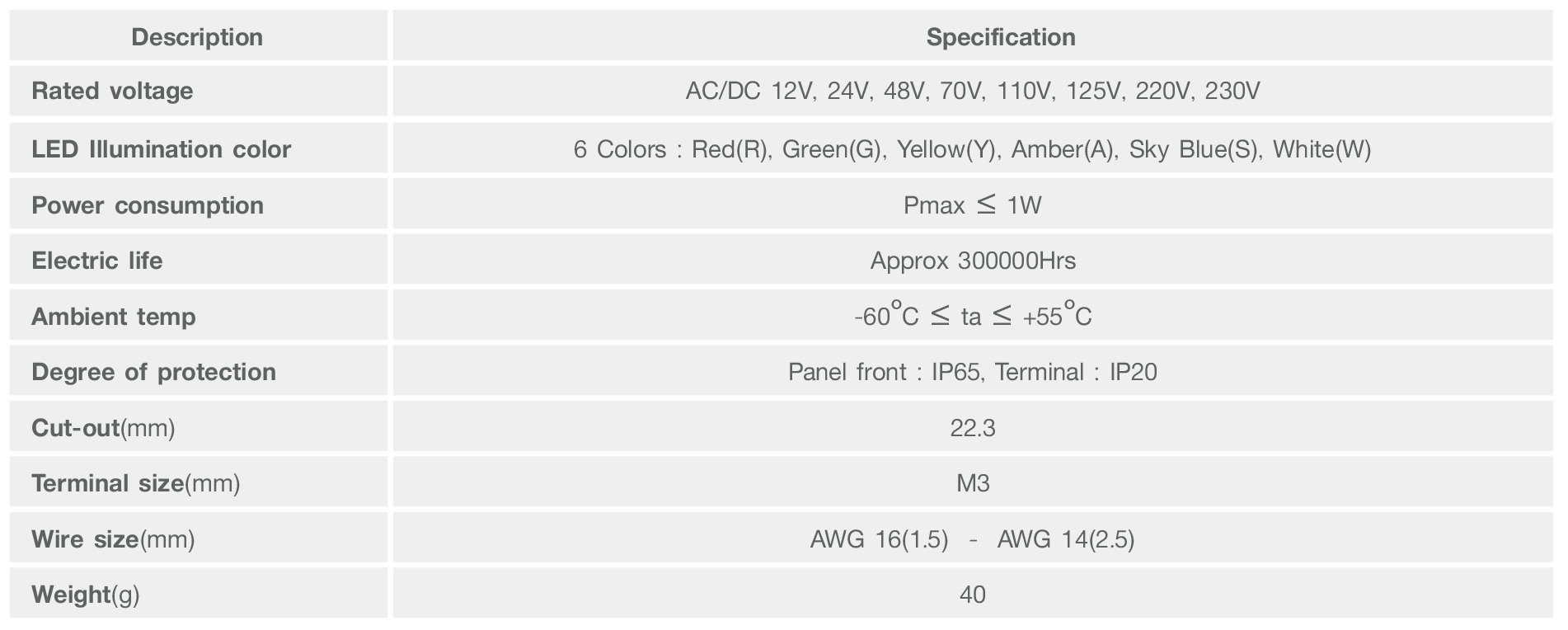

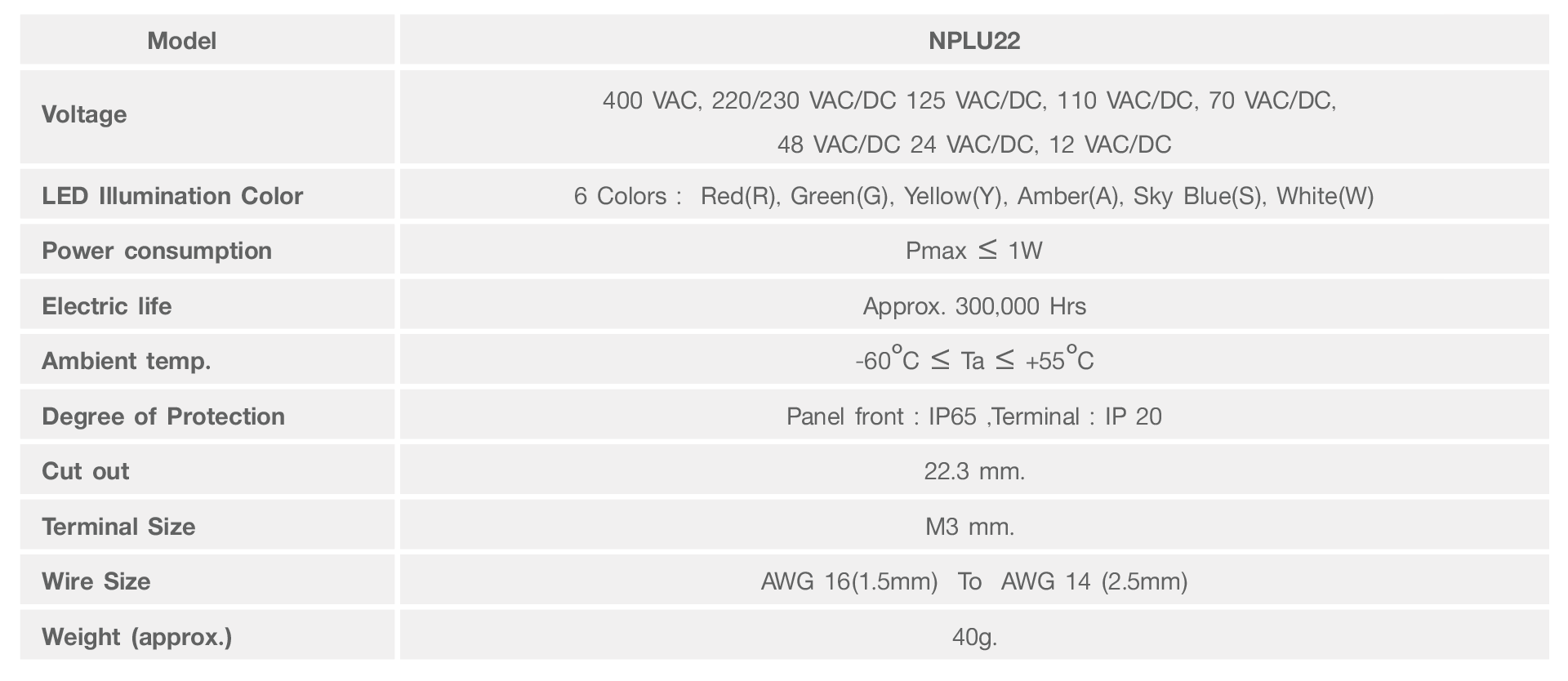

Technical data

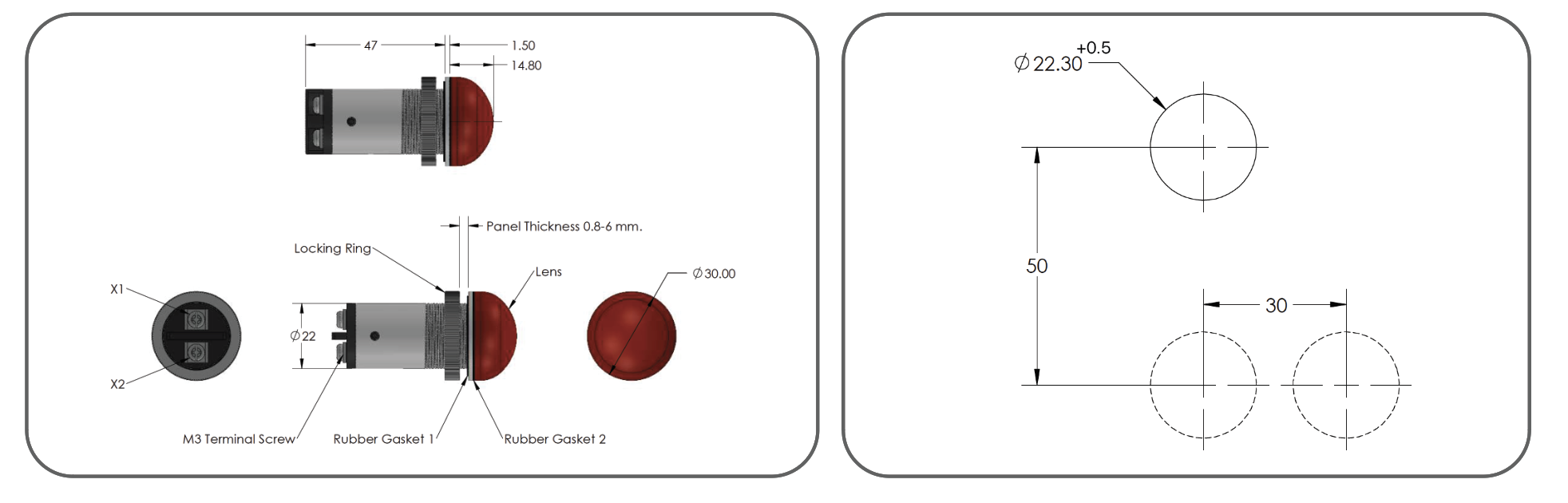

Dimension and panel cut-out

Installation

Safety instructions

•    Turn off the power before installation, removal, wring maintenance and inspection. Failure to turn off power may cause an electrical shock or fire hazard.

•     When wiring, use proper size wire (AWG16-AWG14) to meet voltage and current requirements.

•     Operating with loose terminal screws may cause overheating and fire.

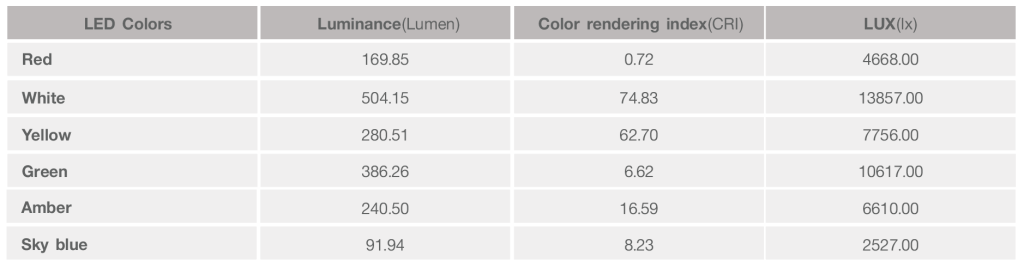

LED Output level

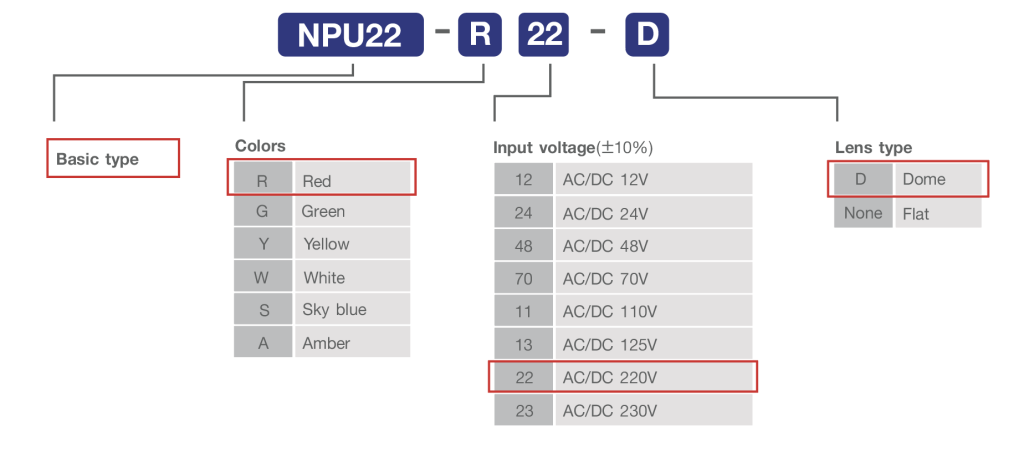

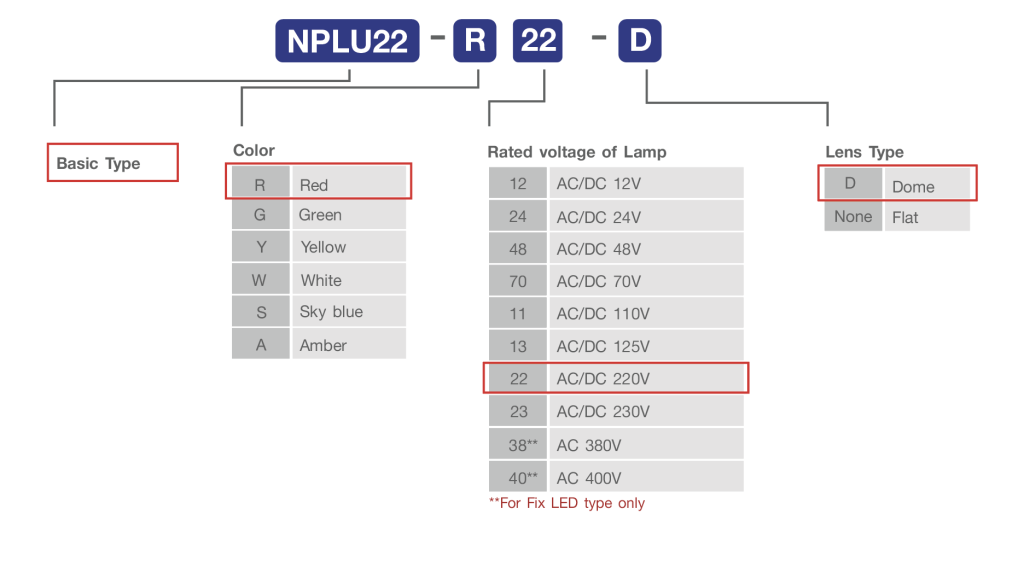

Product coding
