SD-BD-04-01/Rev.10/29-03-67

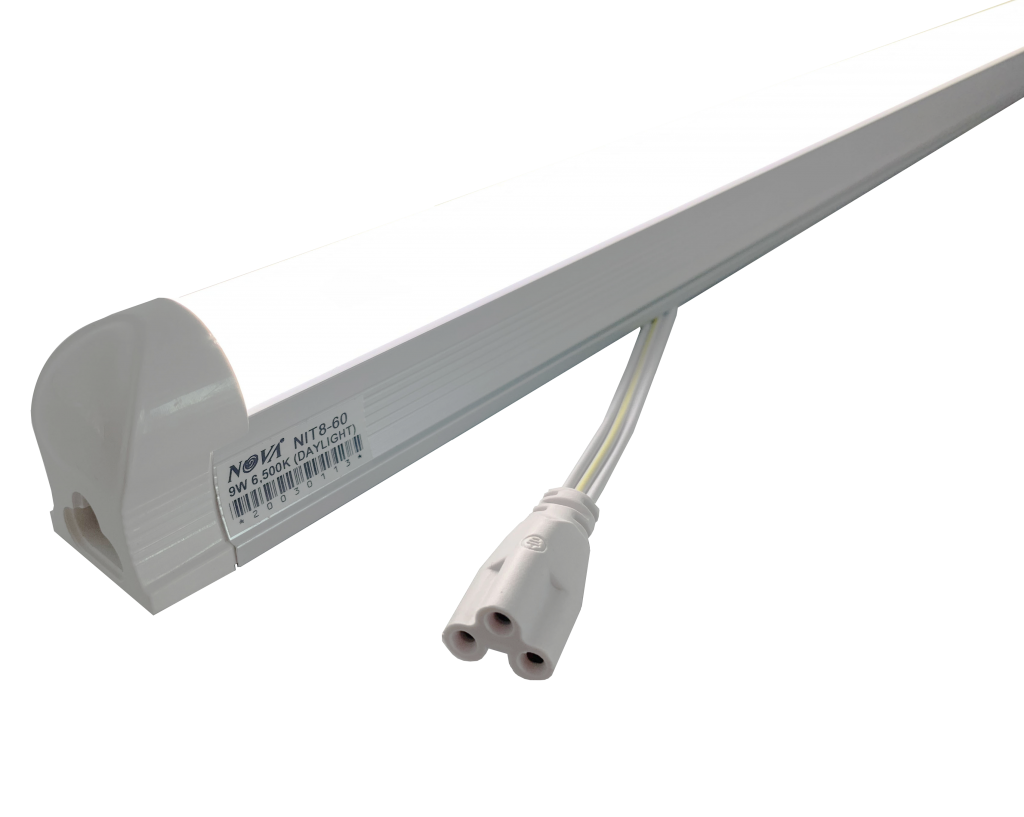

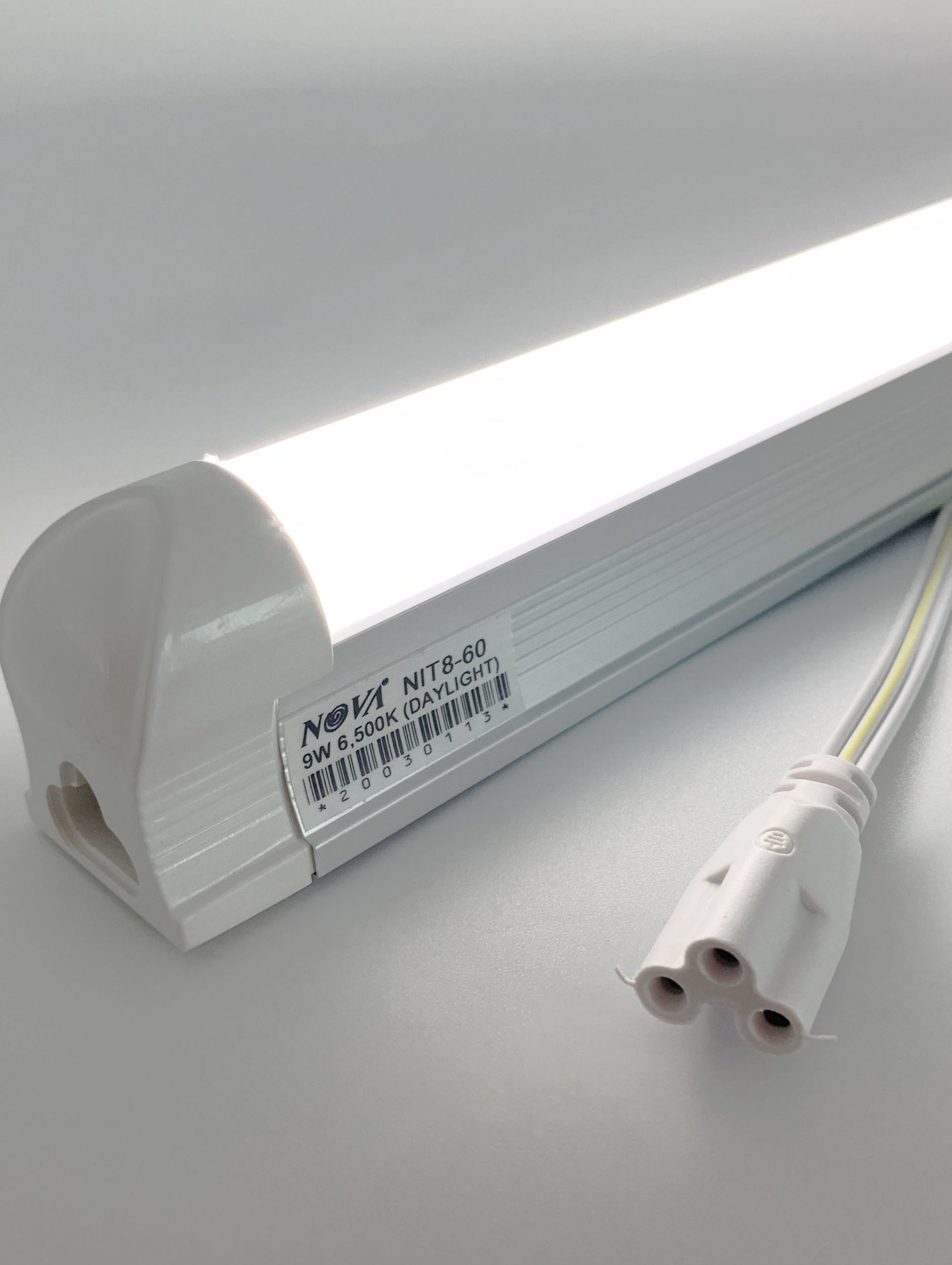

INTEGRATED LED TUBE (NIT8)
INTEGRATED LED TUBE (NIT8)
Description
The integrated tube T8 (NIT8 series) (ultra – brightness LED) is use for lighting the control cubicle and all kinds of switchgear cubicles, long span of input supply voltage for both AC and DC supply. Resistant to high temperatures, high efficiency of power saving and environmental friendly. Suitable for ceiling, wall installation and general walkway.
Features
• LED chip epistar SMD2835
• Hi-bright luminous efficacy 80lm/Watt
• Correlated color temperature 6500k(Day Light)
• Color rendering >75RA
• Supply voltage input 130 ~ 265VAC (50/60Hz) or 185 ~ 365VDC
• Power factor >0.5
• Beam angle 125°
• Protection degree IP33
• No UV/IR and no mercury&lead
• Replace compact fluorescent 9 ~ 36 watt or incandescent 40 ~ 150 watt
• Approvals : CE, RoHSe

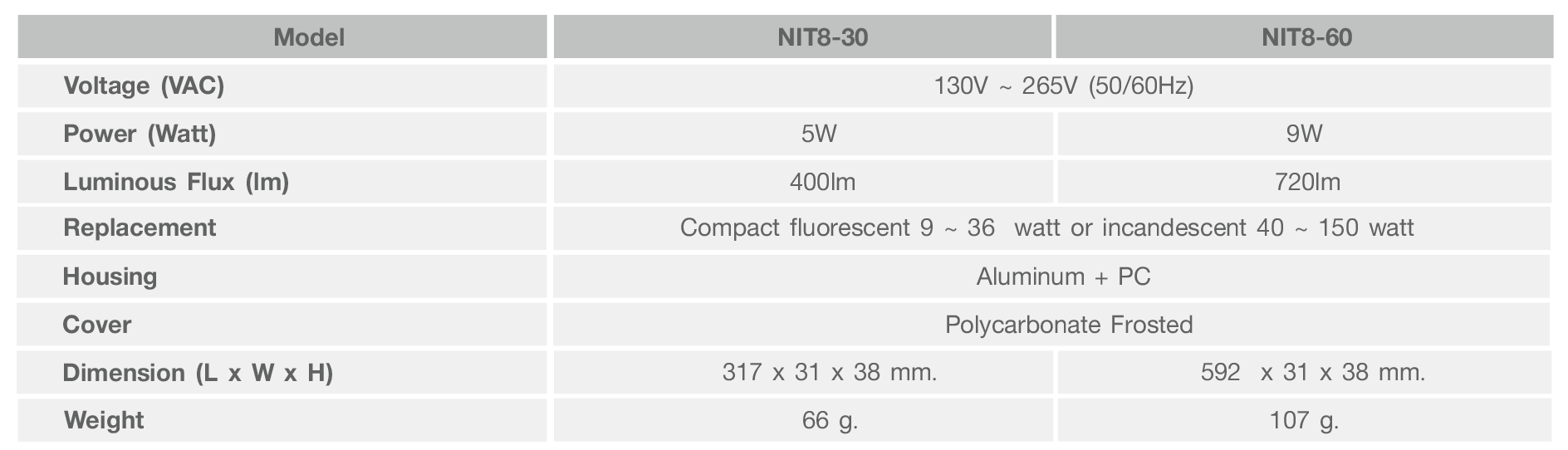

Technical data

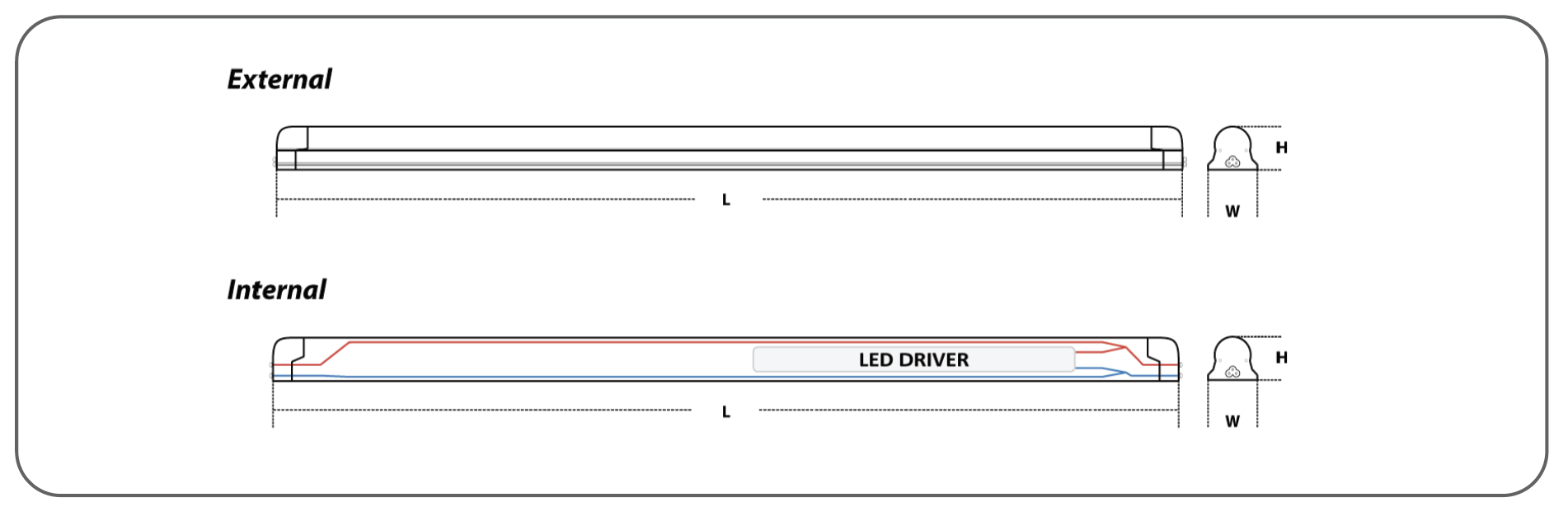

Dimension
