SD-BD-04-02/Rev.05/15-01-67
UNIVERSAL VIBRATING HORN (VH)
PROFESSIONAL HEAVY DUTY HORN (PHH)
Description
Special design for all kinds of engineering machinery (mobile crane, crawler crane, overhead travelling crane, etc.), Port machinery (gantry crane, bridge crane, etc.), Plant (Electronic cabinet), Metallurgies, Chemical industry, Mines and marine etc.
Features
• Die casting aluminum enclosure, providing good appearance, light weight and corrosion resistance.
• Sealed structure design, dustproof and waterproof.
• Super bright LED technology, lifespan up to 100,000 hours.
• Fresnel PC lens provides excellent impact resisting strength, thermal stability and gloss.
• Professional integrated circuit design provides strong anti-EMI capability.
• Various tones/voices and adjustable volume for option

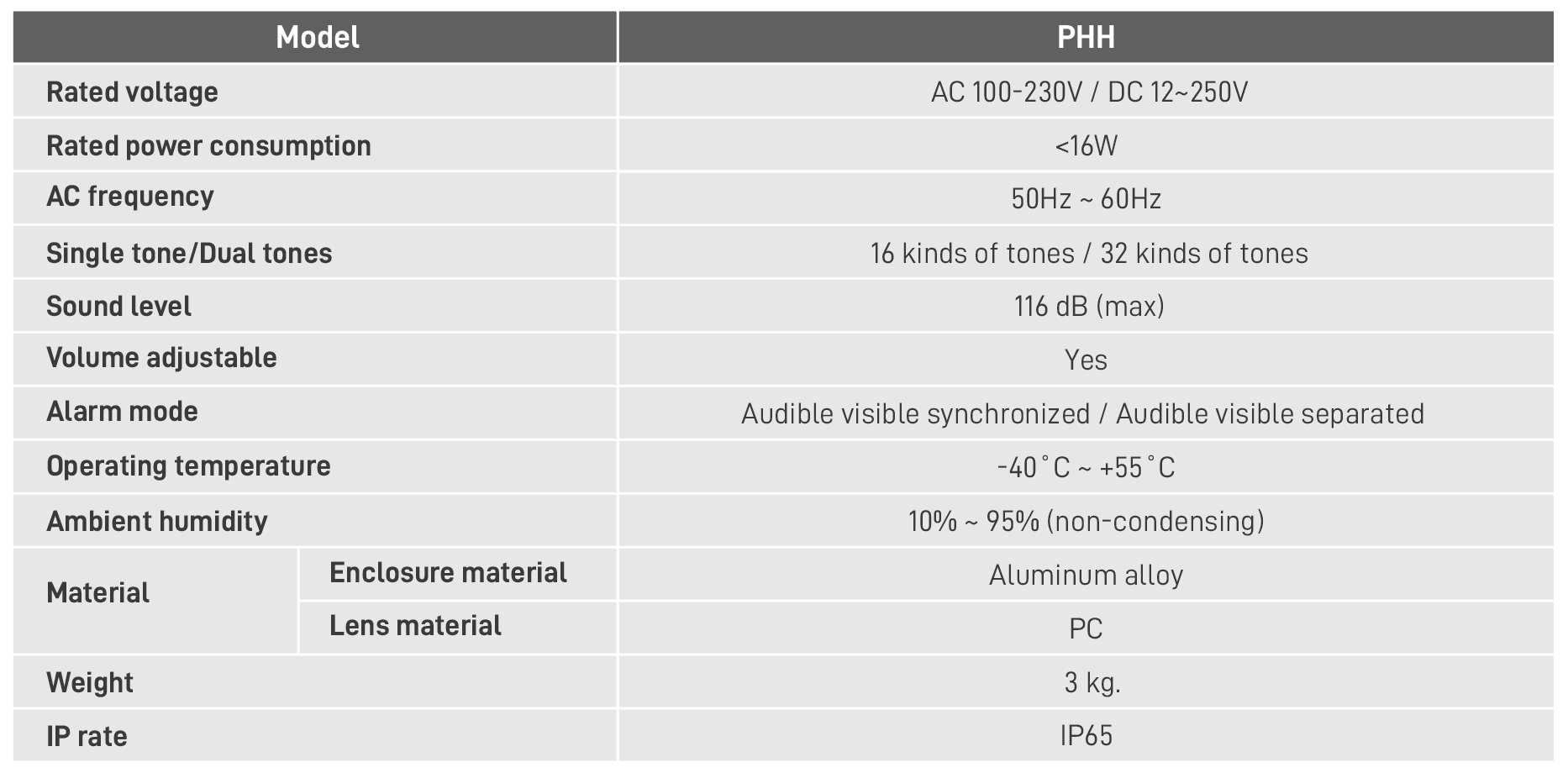

Technical data

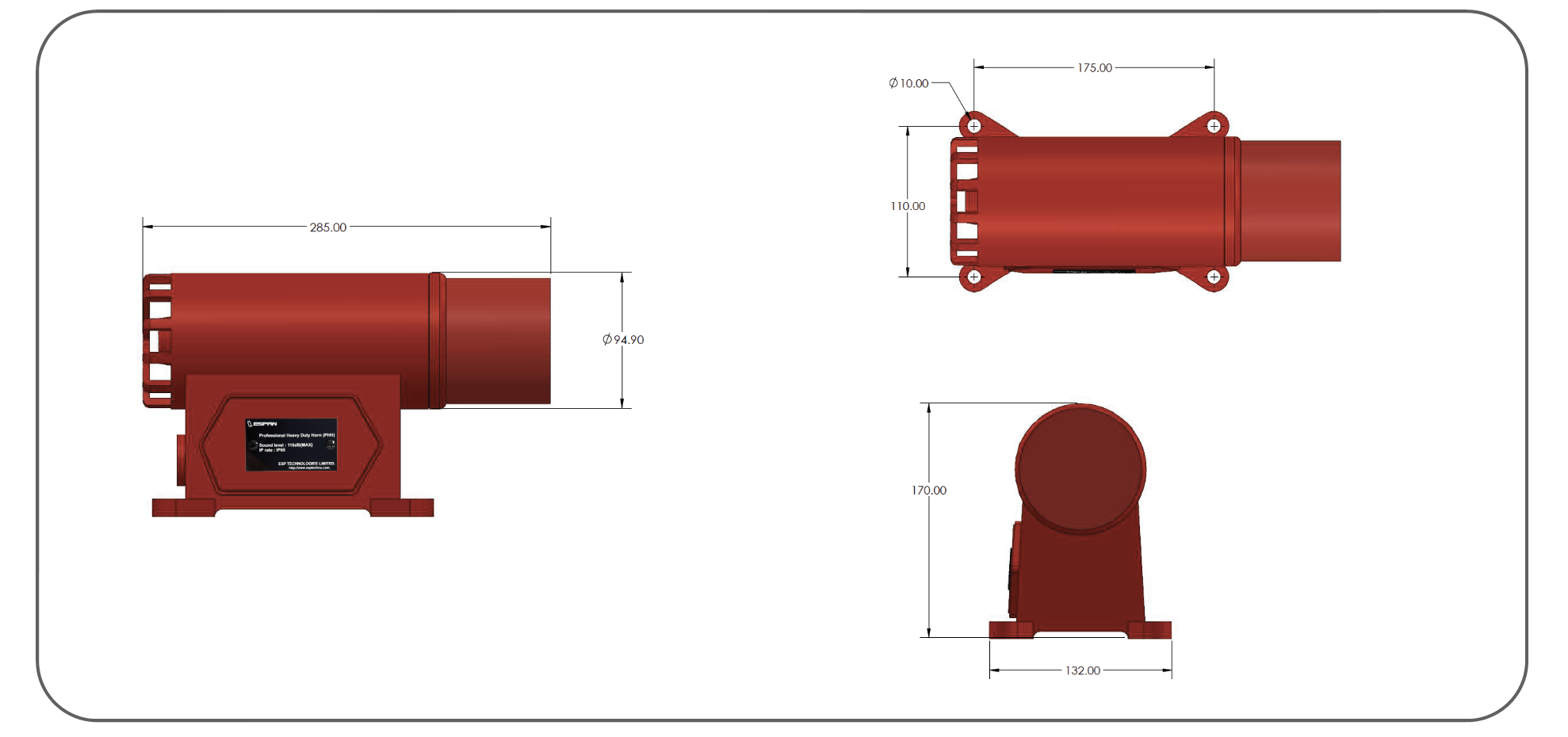

Dimension

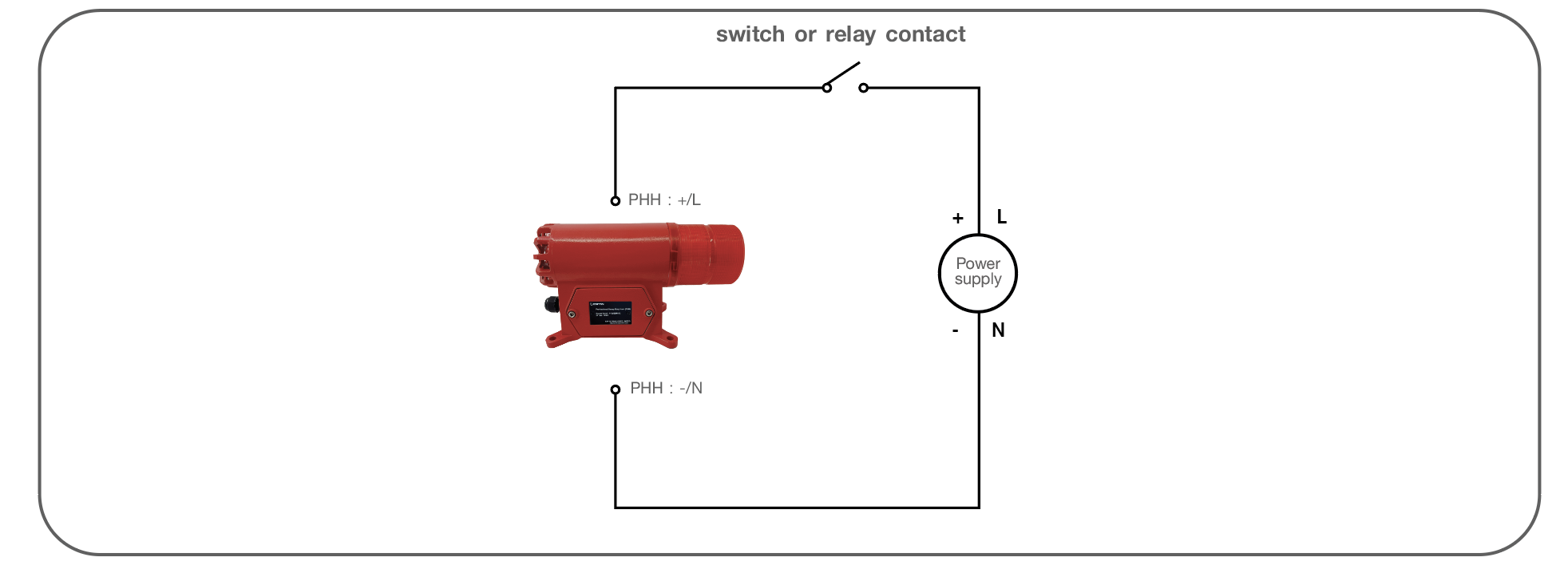

Wiring Diagram

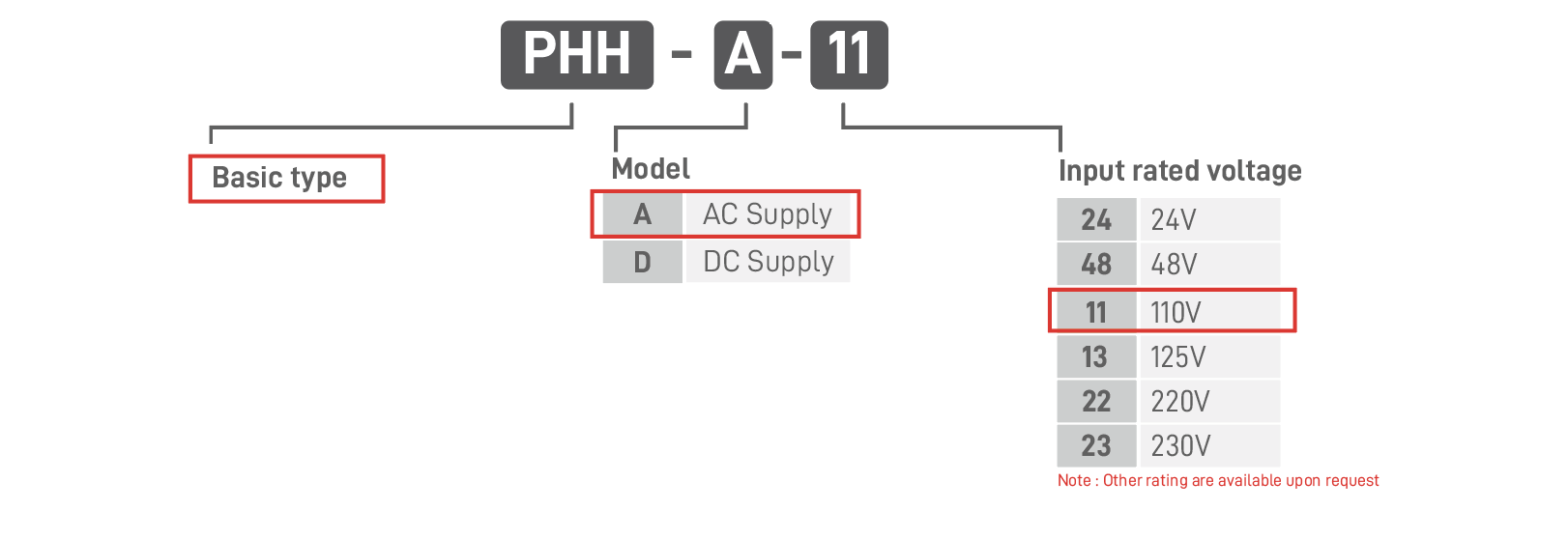

Product coding
