AUTOMATIC TRANSFER SWITCH
RECTIFIER & CHARGER (Surface mounted)
Description
ERC Series (Surface Mounted) The ERC Rectifier & Charger Series are designed for direct loads supply and simultaneous charging stationary batteries of VRLA or other types. They are designed and built with the employment of switch mode technology, with feature excellent dynamic characteristics and high output parameters.
Features
• Efficiency > 85%
• Direct supplying of DC circuits
• 3 color LED battery indicator (all in one)
• User selectable 2 or 3 stage charging profile
• Built-in active power factor correction (PFC function)
• Buffering operation with loads parallel connected to the battery
• Short circuit protection / Reverse polarity / Over voltage / Over temperature
• Thermostatically controlled fan; built-in temperature compensation function (by NTC)
• Wide operating temperature range: -20°C to +60°C (refer to output derating curve)

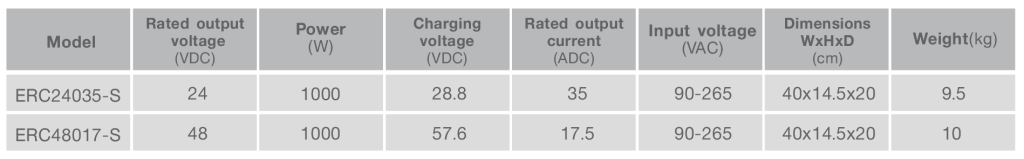

Specification

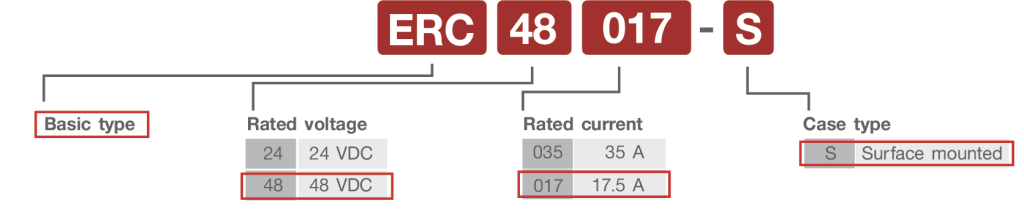

Product Coding
