SD-BD-04-01/Rev.10/29-03-67

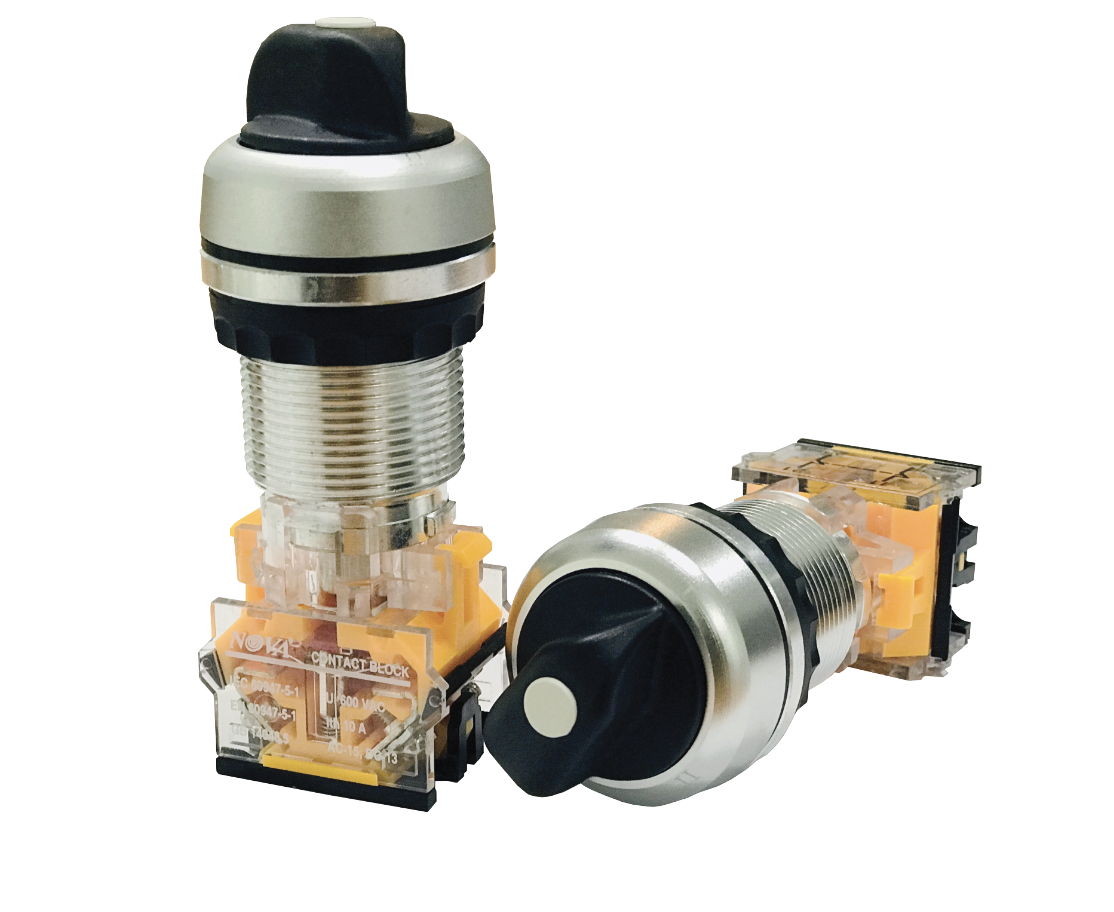

SELECTOR SWITCH (NSSH)
Applications
• Hazardous areas: Zone 1&2 or zone 20, 21, 22
• Explosive gas atmosphere: class II A, II B, II C or Flammable dust atmospheres.
Features
• This products are made by aluminum alloy, stainless steel or medium carbon steel.
• The explosion-proof signal lamp should be used together with flame proof enclosure, can’t be used alone at explosive atmosphere.

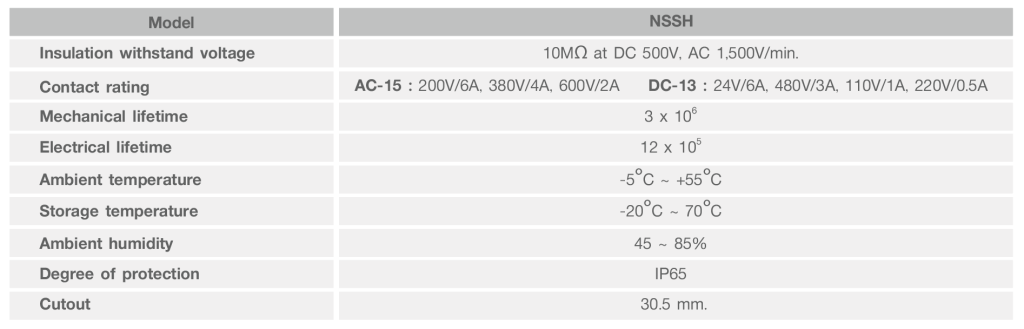

Specification

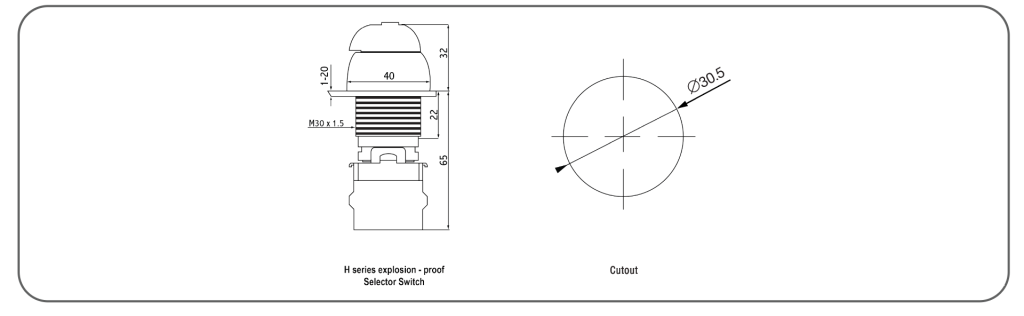

Cutout Dimension

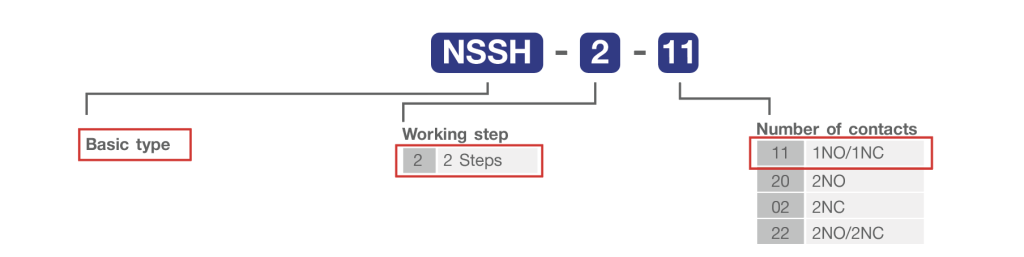

Product Coding
