SD-BD-04-01/Rev.10/29-03-67

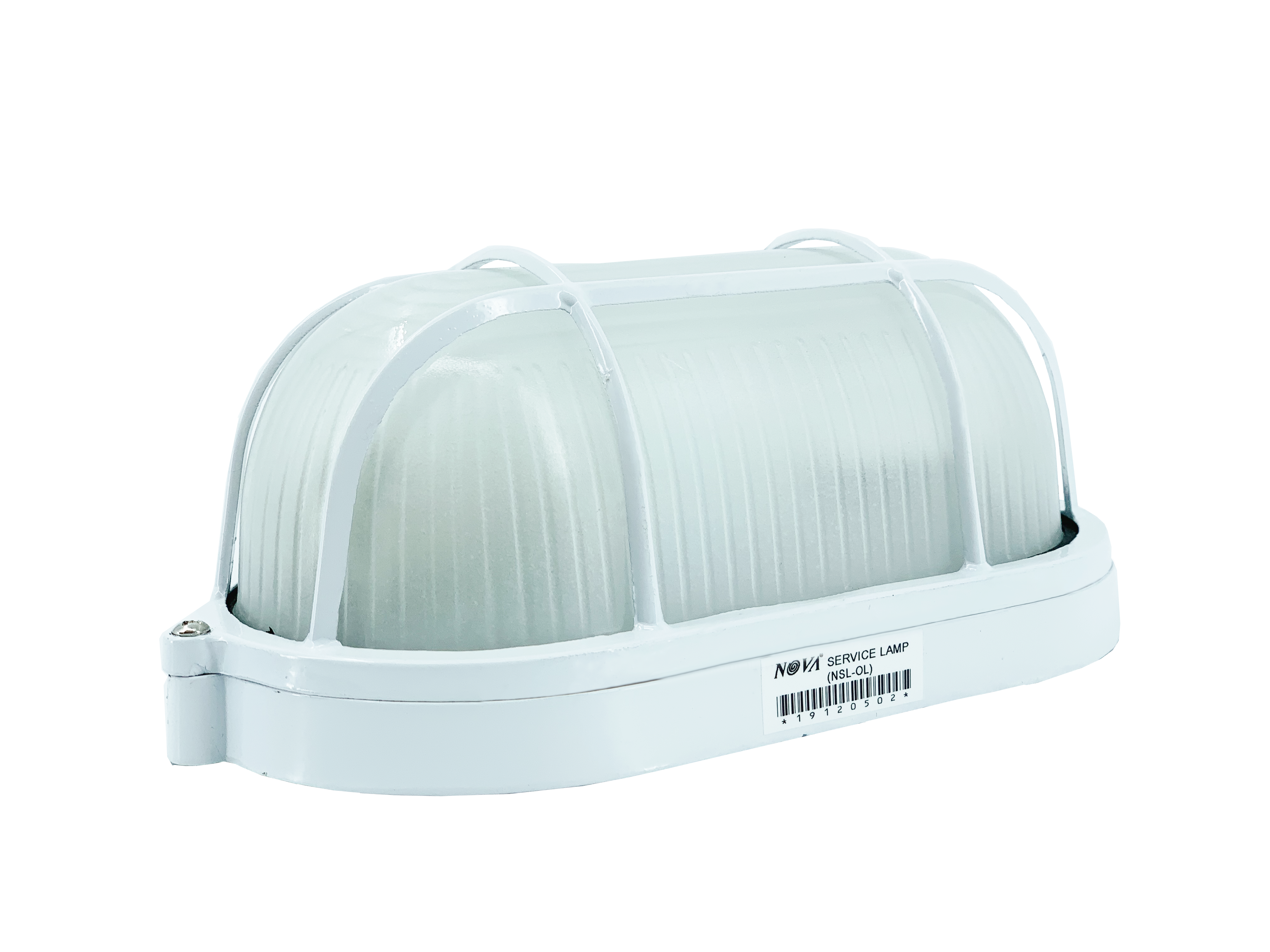

LED SERVICE LAMP (NSL)
LED SERVICE LAMP (NSL)
Description
The LED service lamp (Ultra – brightness LED) is use for lighting the control cubicle and all kinds of switchgear cubicles. Long span of input supply voltage for both AC and DC supply. Resistant to high temperatures, high efficiency of power saving and environmental friendly. Suitable for ceiling and wall installation.
Features
• LED chip Epistar SMD2835
• Hi – Bright luminous efficacy 65lm/watt
• Correlated color temperature 6000k (Day light)
• Color rendering >75RA
• Supply voltage input 85 ~ 265VAC (50/60Hz) or 120 ~ 365VDC
• Power consumption 7watt, 11watt (CFL)
• Luminous flux : 450, 570lumen
• Power factor >0.5
• Beam angle 120°
• Protection degree IP65
• No UV/IR and no mercury&lead
• Life span 25000hrs

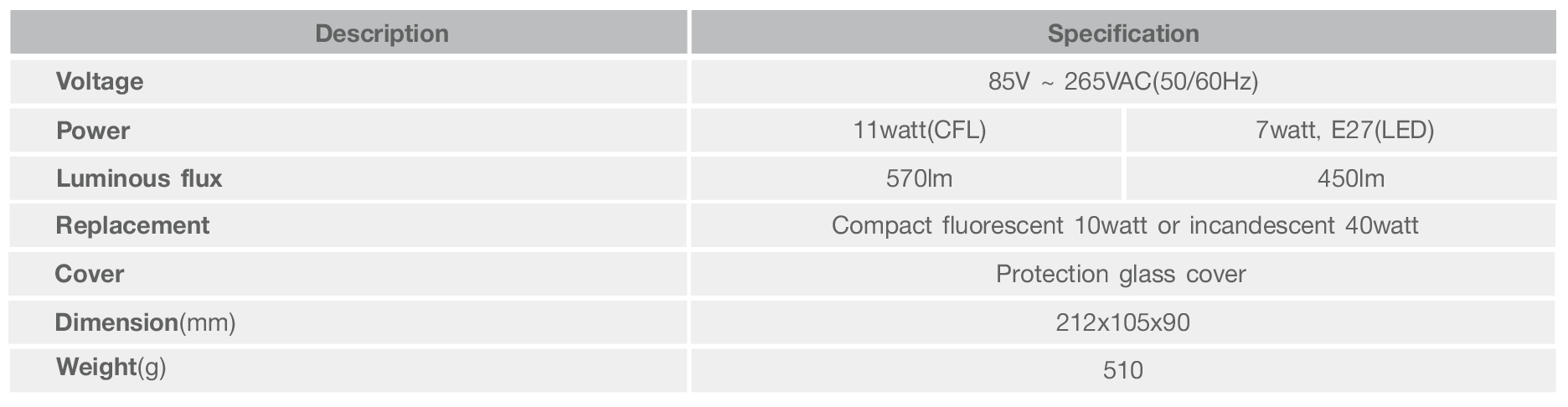

Technical data

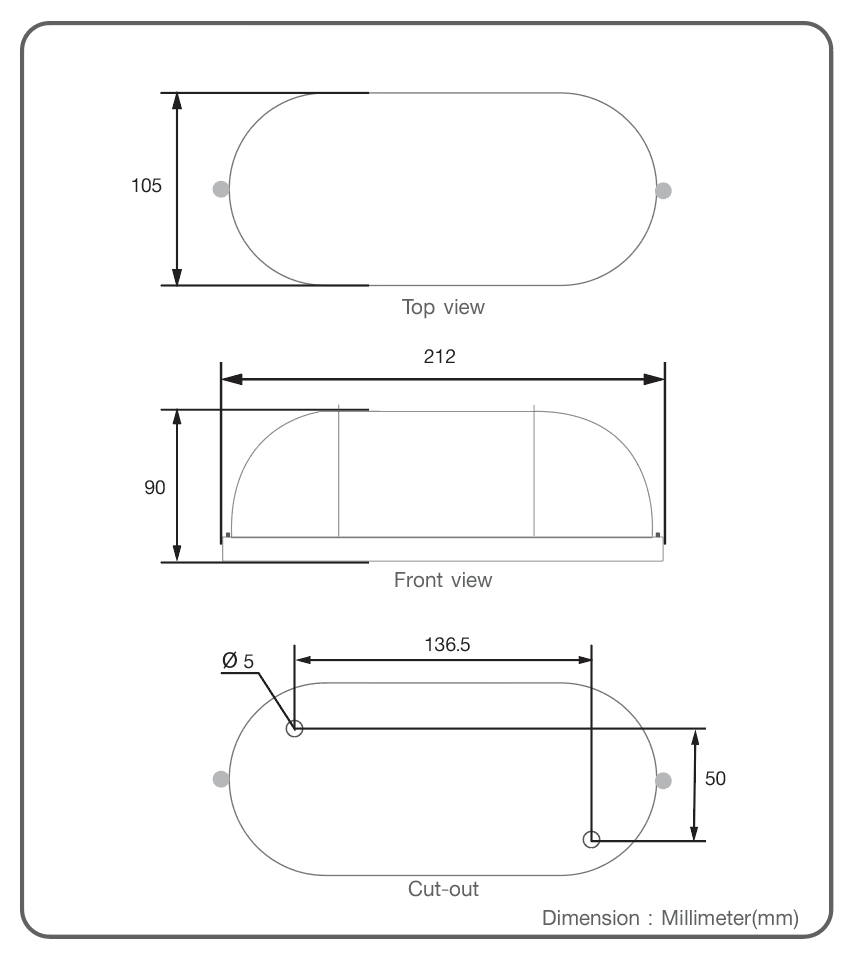

Dimension

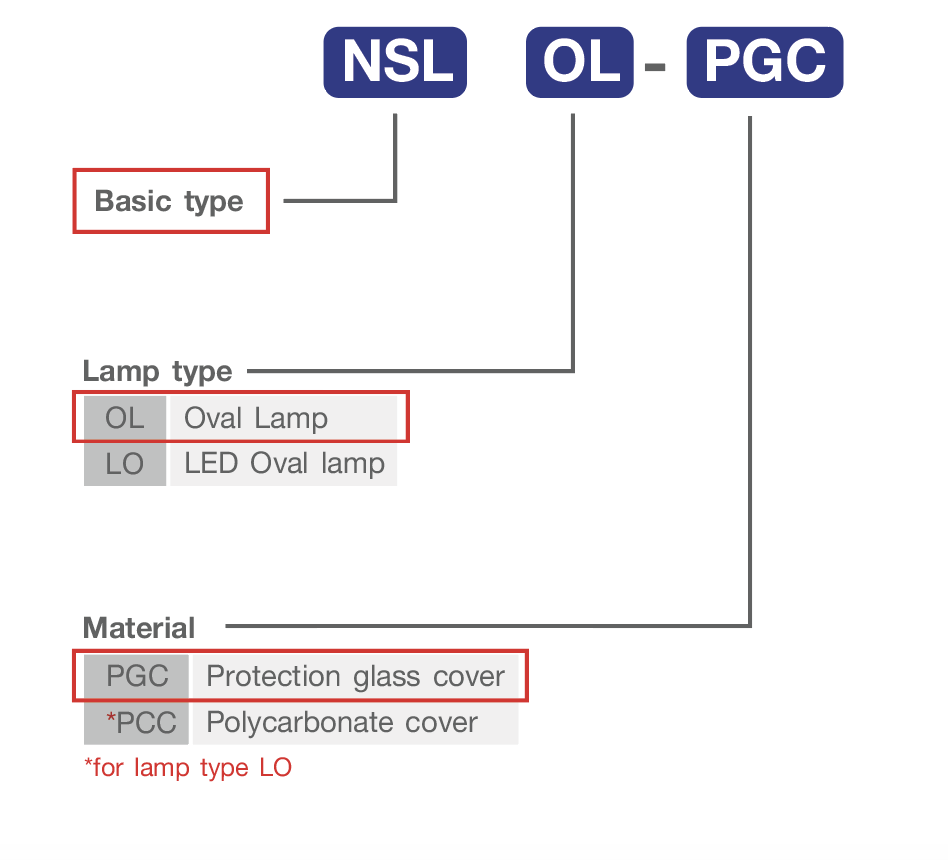

Product Coding
